Fireproof Adhesive Anchoring System High Viscosity OEM ODM Service Sealing Function

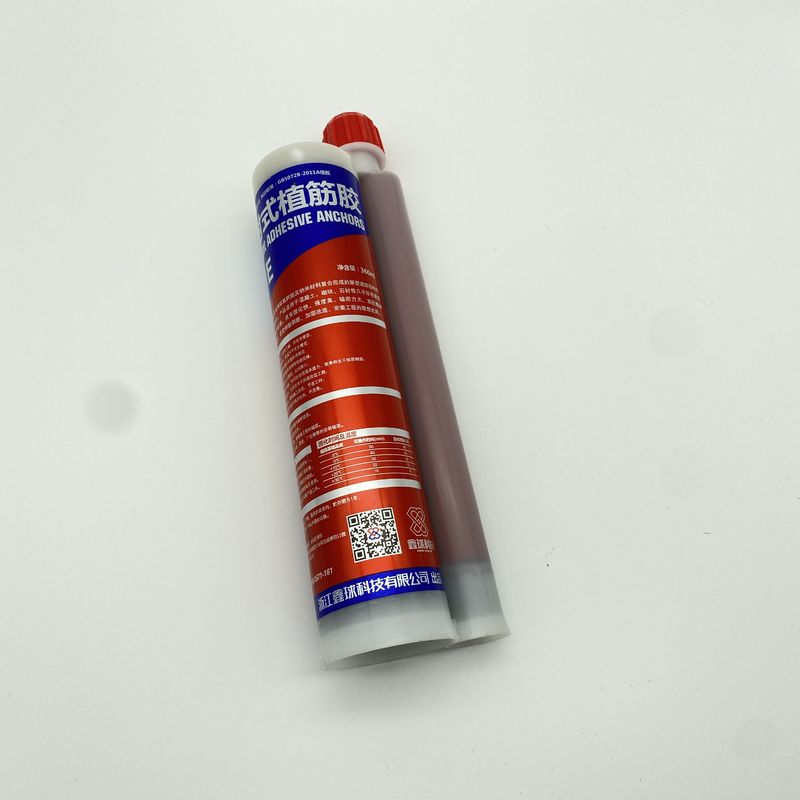

360ml 5:1 High Bonding Strength Adhesive Anchoring System For Structural Strengthening
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.
Item #: FixingChor136
Capacity: 360ml
Materials: Epoxy
Mixing Ratio: 5:1
Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia |
C30 Concrete |
M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 | |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 | |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 | |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 | |
| A4 SS | 24.4 | 35.4 | 65.9 | 102.9 | 105.9 | |
| Designed Pulling force KN | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 | |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 | |
| A4 SS | 13.0 | 19.0 | 35.3 | 55.2 | 56.9 | |
| Holes for each | 54 | 25 | 8 | 5 | 3 |
Anchoring Loading Capacity of rebar to C30 concrete (designed value KN)
| Rebar d(mm) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | |
| Hole D(mm) | 14 | 16 | 18 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 | |
| Bar planting depth (mm) | 100 | 19.8 | ||||||||||
| 120 | 23.8 | 27.6 | ||||||||||
| 140 | 27.7 | 32.2 | 36.3 | |||||||||
| 160 | 31.7 | 36.8 | 41.5 | 45.8 | ||||||||
| 180 | 41.4 | 46.6 | 51.6 | 55 | ||||||||
| 200 | 46.0 | 51.8 | 57.3 | 61.1 | 62.8 | |||||||
| 220 | 57.0 | 63.1 | 67.2 | 69.1 | 71.5 | |||||||
| 240 | 62.2 | 68.9 | 73.3 | 75.4 | 78 | 79.2 | ||||||
| 260 | 74.6 | 79.3 | 81.7 | 84.5 | 85.8 | 96.1 | ||||||
| 280 | 80.4 | 85.4 | 88.0 | 91.0 | 92.4 | 102.9 | 107.4 | |||||
| 300 | 91.5 | 94.2 | 97.5 | 99 | 109.8 | 114.6 | 115.8 | |||||
| 320 | 97.6 | 100.5 | 103.9 | 105.6 | 116.6 | 121.8 | 123 | |||||
| 340 | 103.7 | 106.8 | 110.4 | 112.2 | 123.5 | 128.9 | 130 | |||||
| 360 | 113.0 | 117.0 | 118.8 | 130.4 | 136.1 | 137.5 | ||||||
| 380 | 119.3 | 123.5 | 125.3 | 137.2 | 143.3 | 144.8 | ||||||
| 400 | 125.6 | 130 | 131.9 | 144.1 | 150.4 | 152 | ||||||
| 420 | 136.5 | 138.5 | 150.9 | 157.6 | 159.2 | |||||||
| 440 | 143 | 145.1 | 157.8 | 164.7 | 166.5 | |||||||
| 480 | 149.5 | 151.7 | 164.7 | 171.9 | 173.7 | |||||||
| 500 | 156 | 1583 | 171.5 | 179.1 | 181 | |||||||
| 550 | 164.9 | 188.7 | 197 | 199.1 | ||||||||
| 600 | 181.4 | 205.8 | 214.8 | 217.1 | ||||||||
| 650 | 197.9 | 223 | 232.7 | 235.2 | ||||||||
| 700 | 240.1 | 250.6 | 253.2 | |||||||||
| 750 | 257.3 | 268.5 | 271.5 | |||||||||
| 800 | 286.4 | 289.6 | ||||||||||
| 850 | 307.7 | |||||||||||
| anchoring length (mm) | 147 | 149 | 178 | 210 | 250 | 300 | 351 | 446 | 538 | 592 | 666 | |
| steel yield (mm) | 23.6 | 33.9 | 46.2 | 60.3 | 76.3 | 94.2 | 114 | 147.2 | 184.6 | 212.1 | 241.2 | |
Consumption Chart
| Anchor Rod dia. | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | 90 | 110 | 145 | 180 | 220 |
| Each usage | 4ml | 6ml | 10ml | 31ml | 44.9ml |
| 360ml | 60 | 37 | 19 | 10 | 7 |
| 390ml | 65 | 40 | 21 | 10 | 7 |
| 450ml | 66 | 41 | 22 | 11 | 8 |
| 585ml | 82 | 44 | 25 | 14 | 11 |
Packaging:
| Item No. | Mixing | Standard Pack/Set | Pcs/Ctn | Ctn Size (cm) | Ctn/Pallet | Pallets/ 20'FCL | Pallets/ 40'FCL |
| FixingChor 136 | 5:1 | 360ml+ 1mixer | 20 | 27x27x27 | 60 | 10 | 20 |
| FixingChor 139 | 3:1 | 390ml+ 1mixer | 20 | 40x26x27 | 50 | 10 | 20 |
| FixingChor 158 | 3:1 | 585ml + 1mixer | 12 | 29x21.5x30 | 64 | 10 | 20 |
| FixingChor 140 | 1:1 | 400ml+ 1mixer | 30 | 49×30×26 | 40 | 10 | 20 |
| FixingChor 165 | 1:1 | 650ml+ 1mixer | 10 | 31.5×21×26 | 70 | 10 | 20 |
| FixingChor 142 | 2:1 | 420ml + 1mixer | 20 | 46x22x23 | 40 | 10 | 20 |
Our main product series:
-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)
-- Carbon fiber reinforcement system,
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm
-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive
-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive
